C60 AWNING WINDOW
Frame: 60mm X 20mm
Available size:Max Height: 1800mm
Max Window Panel width: 1500mm
Available glazing: Double Glazed up to 19mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Flynet : Fiberglass and Stainless Steel Security Mess Available
Fixing Method: Timber reveal/Subsill+Subhead /
Subframe/Fin fix
Hardware : Chain Winder
T68 SLIDING WINDOW
Frame: 101.6mm X 38mm
Available size Max Height:2400mm
Max Window one Panel width: 1200mm
Available glazing: Double Glazed up to 19mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Flynet : Fiberglass and Stainless Steel Security Mesh Available
Fixing Method: Timber reveal/Subsill+Subhead /Subframe/Fin fix
Hardware : MA Lock
C60 CASEMENT WINDOW
Frame: 60mm X 20mm
Available size:Max Height:1700mm
Max Window Panel width: 900mm
Available glazing: Double Glazed up to 19mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Flynet : Fiberglass and Stainless Steel Security Mesh Available
Fixing Method: Timber reveal/Subsill+Subhead /Subframe/Fin fix
Hardware : Winder
C60 FIXED WINDOW
Frame: 60mm X 20mm
Available size:Max Height:2400mm
Max Window Panel width: 2500mm
Available glazing: Double Glazed up to 19mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Fixing Method: Timber reveal/Subsill+Subhead /
Subframe/Fin fix
C101 SASHLESS WINDOW
Frame:101.6mm X 50mm
Available size:Max Height:2300mm
Max Window Panel width: 1500mm
Available glazing: Double Glazed up to 16mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Flynet : Fiberglass and Stainless Steel Security Mesh Available
Fixing Method: Timber reveal/Subsill+Subhead /
Subframe/Subsill+Latch
Hardware : Handle Lock
T68 SLIDING DOOR
Frame: 101.6mm X 38mm
Available size:Max Height: 2400mm
Max Door Panel width: 1200mm
Available glazing: Double Glazed up to 19mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Flynet :Stainless Steel Security Mesh
Fixing Method: Timber reveal/Subsill+Subhead /Subframe/ Subsill+Fin
Hardware : D Lock
50 BI-FOLD WINDOW
Frame Section: 50mm
Available glazing: Double Glazed up to 25mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Hardware : Handle Lock

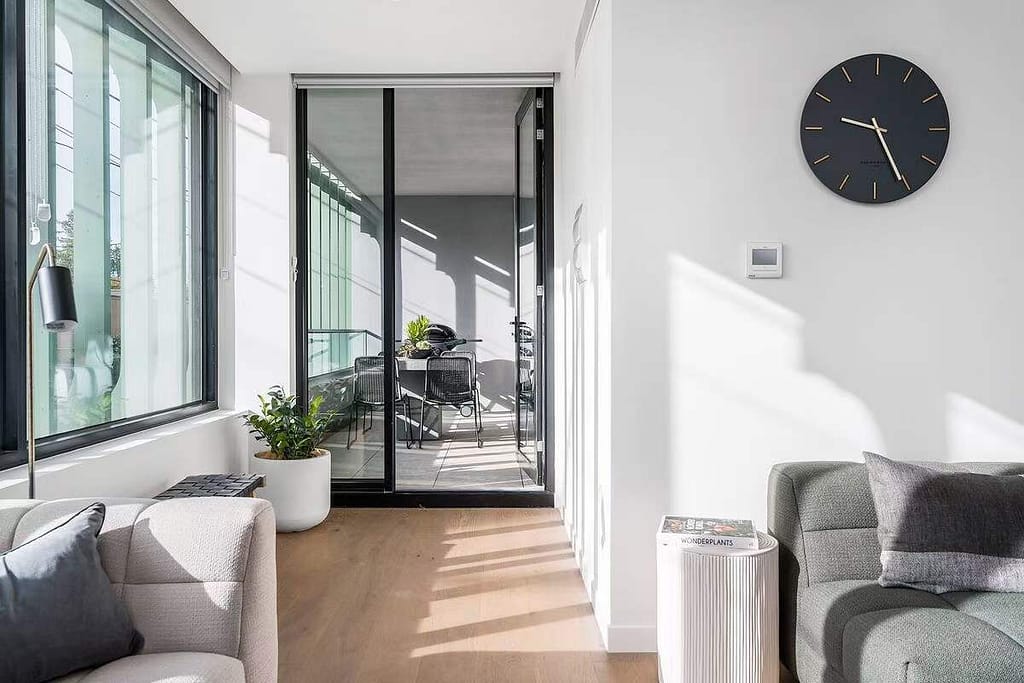

H35 HINGED DOOR
Frame: 101.6mm X 50mm
Available size:Max Height: 2400mm
Max Window Panel Width: 900mm
Available glazing: Double Glazed up to 26mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Flynet :Stainless Steel Security Mesh
Fixing Method: Timber reveal/Subsill+Subhead /
Subframe/Subsill+Latch
Hardware : Handle Lock
80 BI-FOLD DOOR
Frame Section: 80mm
Available glazing: Double Glazed up to 26mm IGU
Extrusion Profiles :6063-T5
Finish: Powder Coating or Anodized
Hardware : Handle Lock
